Plinth Block 4" - 4

Plinth Block 4" - 4

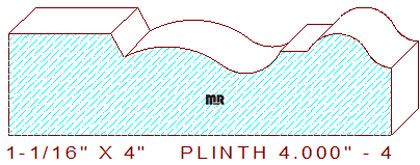

This smaller-sized plinth block measures 4.000" wide by 1.062" thick. The profile consists of a combination of geometrical shapes, a 1-1/16" wide fillet with a chamfered edge, elongated cyma reversa, fillet, and another smaller cyma reversa positioned on the thinner side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
