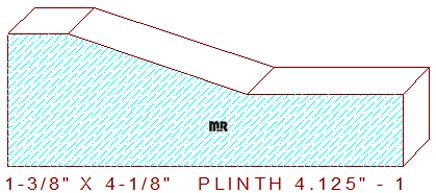

The chamfered profile is comprised of a 5/8" wide horizontal fillet attached to an elevation-changing 18.435-degree beveled line, joined to a 1-5/8" broad line, leaving a 3/4" thickness dimension on the thin side of the pattern.
Use one of our 125% concentration ultimate Borazon grinding wheels, finish grinding at 3000rpms, with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel moulding knives. During the machining process, these cutters will be capable of milling some of the finest quality architectural millwork you have ever produced.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
