Plinth Block 4-1/4" - 1
Plinth Block 4-1/4" - 1

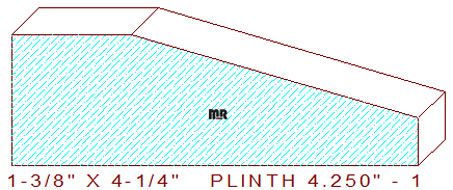

This Plinth Block 4-1/4" - 1 measure 4.250" wide by 1.375" thickness. The contemporary profile comprises a 1-1/4" wide horizontal fillet attached to a three-inch wide 16.32-degree bevel leaving a 1/2" tall vertical fillet on the small side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
