Plinth Block 5"

Plinth Block 5"

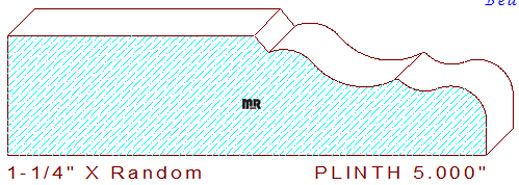

This plinth block measures 5" wide by 1-1/4" thickness. The profile portion measures about 2-7/16" wide. It consists of a chamfer flowing into two consecutive french curves cascading downward and ending in a 3/8" radius.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
