Plinth Block 6" - 2

Plinth Block 6" - 2

Plinth Block 6" - 2

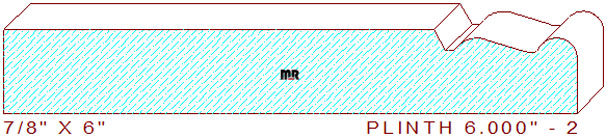

This stylish plinth block 6" - 2 measures 6.000" wide by .875" thickness, requiring the use of a 6-1/4" wide blank of five-quarter lumber for milling. The decorative profile composes a 4-1/2" wide flat line segment on the top left center, joined to a 7/32" deep sixty-degree beveled line that connects to a 5/64" wide sunk fillet, attached to a shallow two tangent radius wave-like curvature with a 27/64" wide half round bead on the right side of the detail.

Utilize any of our beautiful patterns to create a stylish moulding catalog for your millwork company, or connect our extensive profile catalog to your website. This will enable you to offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you remodel that beautiful house being transformed into an elegant home.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 6.000" / Depth of Cut = .457" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
