Plinth Block 6" - 4

Plinth Block 6" - 4

Plinth Block 6" - 4

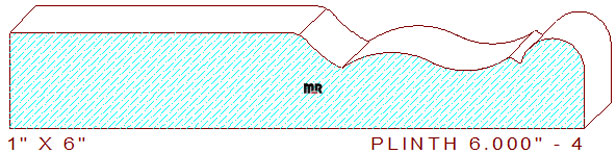

This beautiful plinth block 6" - 4 measures 6.000" width by 1.000" thickness, requiring a 6-1/4" wide blank of five-quarter lumber for milling on an industrial moulder. The elegant profile comprises a three-inch broad line segment with a 9/32" rolled edge on the top left. The semicircle connects to a 1-1/8" concave semicircle in the center, joined to a two tangent radius s-shaped curvature with a 5/32" bevel, attached to a 21/32" half-round on the design's right side.

Utilize our beautiful patterns to create a stylish molding catalog for your millwork company, or, connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production costs spent on knife design. Let us help you construct a beautiful house and transform it into an elegant home.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart and place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 6.000" / Depth of Cut = .550" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
