Plinth Block 6-1/4"

Plinth Block 6-1/4"

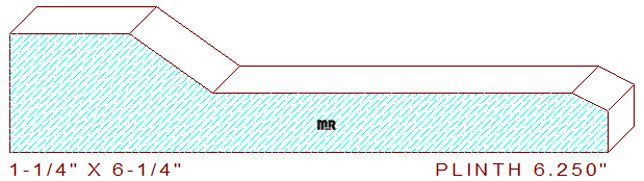

This chamfered plinth block measures 6-1/4" wide by 1-1/4" thick. The profile comprises a 1-1/4" wide fillet, a 7/8" broad splay face, a 3-3/4" vast flat portion, and a 3/8" broad splay face on the top of the detail. It will require five-quarter lumber to mill this pattern on an industrial moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
