Plinth Block 7"

Plinth Block 7"

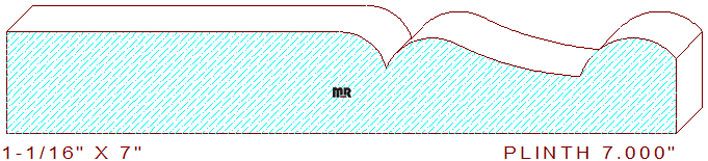

This Plinth Block 7" measures 7.000" wide by 1-1/16" thickness. The profile comprises a 1/2" radiused edge fillet connected to an elongated cyma reversa with a partial half round bead at the top of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
