Plinth Block 7" - 1

Plinth Block 7" - 1

Plinth Block 7" - 1

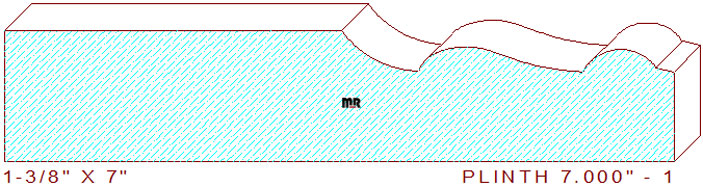

This attractive plinth block 7" - 1 measure 7.000" wide by 1.375" thickness. The lovely profile is comprised of a 3-17/32" wide horizontal line, connected to a 1-1/32" radius cove that transitions into a three tangent radius cyma reversa, attached to a 49/64" wide half circle with a 3/16" wide angled line on the thin side of the design.

Need some supplies for your moulder? Choose any of our quality high-speed knife steel or premium carbide; we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 7.000" / Depth of Cut = .461" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
