Plinth Block 7-1/4"

Plinth Block 7-1/4"

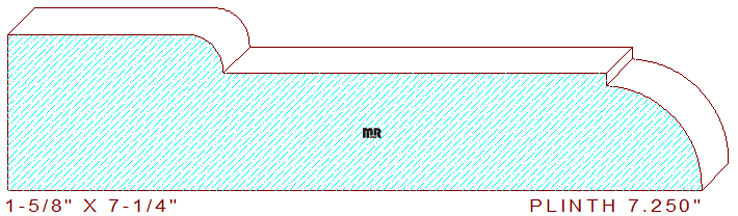

This beefy plinth block 7-1/4" measures 7.250" wide by 1.625" thickness, requiring the use of eight-quarter lumber for machining on an industrial molder. The profile contains a 2-1/4" whole fillet at the bottom attached to a 3/8" radius quarter round bead that transitions into a 4" broad straight line the drops down 1/8" in elevation to a 1-1/16" radius quarter circle at the top of the pattern. The Cad-produced Dxf file contains two high-precision template drawings to create knives for this detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
