Plinth Block 7-3/8"

Plinth Block 7-3/8"

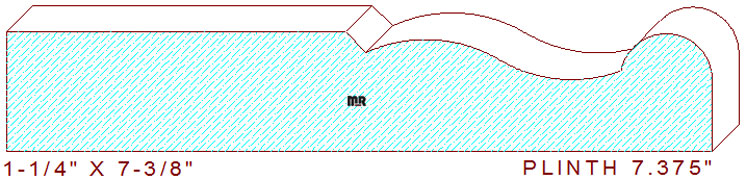

This Stylish Plinth Block 7-3/8", measures 7.375" wide by 1.250" thickness. The profile consists of a 3-3/4" wide fillet with an attached bevel that transitions into an elongated cyma reversa composed of two tangent 1-1/2" radiuses connected to a 31/64" radius half circle at the top of the detail. Are you searching for other design ideas for your elegant home? We offer over 15,000 profile options for you to choose from?
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
