Plinth Block 8" - 8

Plinth Block 8" - 8

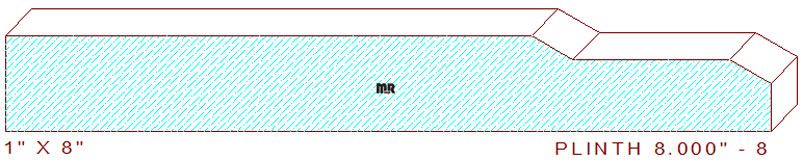

This plinth block 8" - 8 measures 8.000" wide by 1.000" thick, the profile section measures 2-1/2" in width and consist of two equal chamfers about 7/16" wide that are 1/4" high positioned on separate elevations; they are divided by a fillet section in the middle.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
