Plinth Block 8-1/2"

Plinth Block 8-1/2"

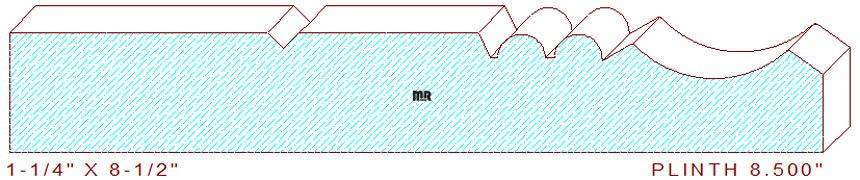

This Plinth Block 8-1/2", measures 8.500" wide by 1-1/4" thickness. The profile comprises a cavetto/cove flanked by chamfers connected to two half-round circles flanked by a small fillet and a chamfer with a slight V groove positioned in the lower section of the pattern. This downloadable DXF file contains two high-precision CAD drawings to create knives for this specific detail, one for the entire width and the other for only the profile, enabling the width to any desired size.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
