Plinth Block 8-1/2" - 1

Plinth Block 8-1/2" - 1

Plinth Block 8-1/2" - 1

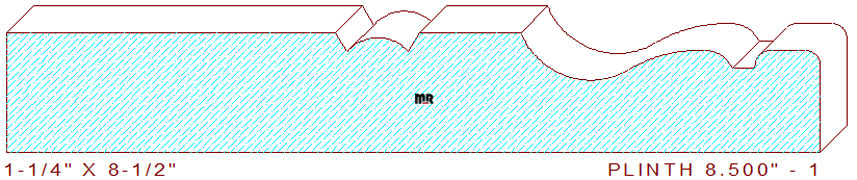

This stylish plinth block 8-1/2" - 1 measures 8.500" wide by 1.250" thickness. The detail will require six-quarter lumber for milling. The beautiful profile is composed of a 3-7/16" wide straight line on the left, connected to a recessed 7/8" wide semicircular arch flanked by sixty-degree chamfers, attached to a 1-1/16" wide straight line that transitions into a three tangent radius french curve, joined to a 15/64" wide sunk fillet with an 11/16" wide raised fillet with 5/32" eased edges on the right side of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes, click the calculator below; we have added only the important measurements and enter the appropriate dimension in the boxes provided. A brief detailed explanation of using the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.500" / Depth of Cut = .500" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
