Plinth Block 8-5/8" - 11

Plinth Block 8-5/8" - 11

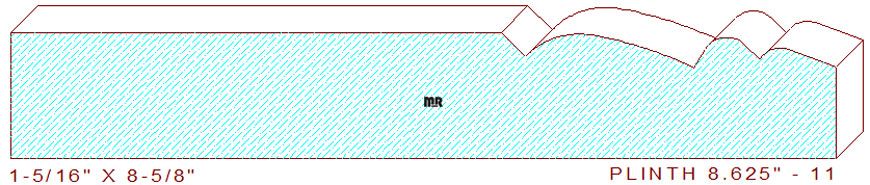

This Plinth Block 8-5/8" - 11 measures 8.625" wide by 1.312" thickness. The detail comprises 3-1/2" of detail, consisting of three different-sized thumbnail shape profiles connected to a chamfer. There are two layouts of this detail in the downloadable DXF file, one designed for full width, and the other is for the detail only, either for a six-head moulder or shaper.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
