Plinth Block 8-5/8" - 8

Plinth Block 8-5/8" - 8

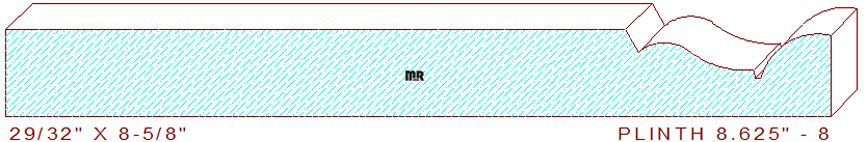

This Plinth Block 8-5/8" - 8 measures 8.625" wide by .906" thickness. The profile section is about 2-1/8" wide, which consist of an angled downward step connected to a cyma reversa that transitions into a quirk with an attached quarter rounded bead positioned at the top of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
