Plinth Block 8-5/8" - 9

Plinth Block 8-5/8" - 9

Plinth Block 8-5/8" - 9

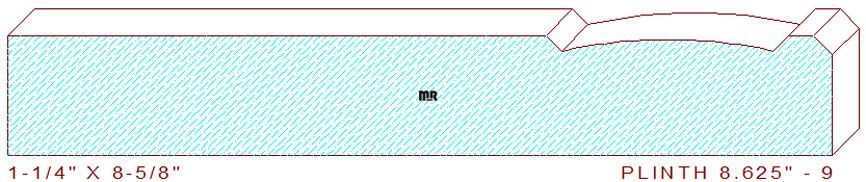

This Chamfered Plinth Block 8-5/8" - 9 measures 8.625" wide by 1.250" thickness, the profile portion measures 3.000" wide and comprises a shallow radius arc that is flanked by chamfers with a raised fillet section at the top. There are two template designs in the downloadable DXF file, one for milling the entire 8-5/8" width and the other is for milling just the detail; this will enable you to alter the widths if you decide to mill this on a shaper or if you have a six cutter head machine with two top spindles, this design will save you time and money on knife steel.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
