3/64" Radius Edge - 5
3/64" Radius Edge - 5

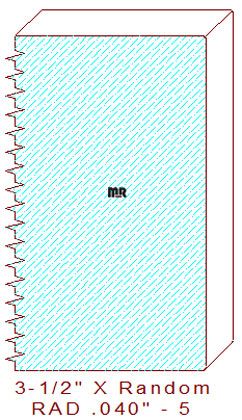

These double 3/64" radius edge - 5 are capable of milling a .040" radius on a piece of lumber finishing 3-1/2" in thickness. The profile knives are designed to be milled from a top cutter head, allowing the thickness to be adjusted to any desired size. This size is generally the most common radius for your finish grinding wheel. If you use a 1.5-millimetre-wide wheel instead, you could go to a smaller size if needed. You can easily mill all four edges of the lumber simply by producing a set of knives for both the left and right cutter heads.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.218
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.218
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$265.00
$221.00
(Template not needed)
Total:
$486.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$282.00
$238.00
(Template not needed)
Total:
$520.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.50
$263.50
(Template not needed)
Total:
$571.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
