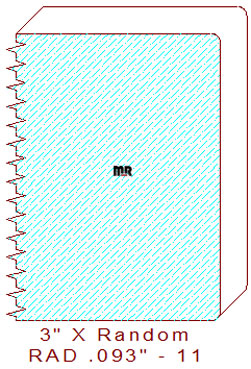

3/32" Radius Edge Moulding - 11

3/32" Radius Edge Moulding - 11

3/32" Radius Edge Moulding - 11

This double 3/32" radius edge moulding 11 is capable of milling two 3/32" round-overs on the upper and lower, or the top and bottom edge of a piece of lumber measuring three inches tall or wide. The width is adjustable to any desired size within the parameters of the machinery used to mill the pattern. If you want to machine all four corners, simply grind a set of knives for both the right and left vertical cutter heads on the molder.

We're delighted you found a functional profile that interests you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness or Width = 1.750" / Depth of Cut = .281" (right blades) or .281" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
