1/8" Radius Edge - 34

1/8" Radius Edge - 34

1/8" Radius Edge - 34

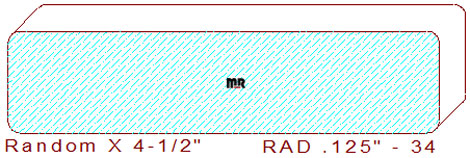

This double-radius edge 1/8" - 34 measures 4.500" wide by random thickness, requiring the use of a 4-3/4" wide blank of various thickness lumber for milling on an industrial molder. The knives are capable of milling two 1/8" round-overs on a piece of lumber measuring 4-1/2" thickness or width. The acrylic template can be moved over and referenced to either side of the profile knife grinder to manufacture knives for any cutter heads on the molder. This action will enable all four sides of the lumber to get milled simultaneously. Suppose you want to cut the edges of the lumber from the right and left vertical cutter heads to mill random widths; we have other patterns to accomplish this.

Utilize our beautiful patterns to create a stylish molding catalog for your millwork company, or simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you remodel that beautiful house into an elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.281
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.281

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$305.50
$262.50
(Template not needed)
Total:
$568.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$326.50
$283.50
(Template not needed)
Total:
$610.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$347.50
$304.50
(Template not needed)
Total:
$652.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
