1/8" Radius Edge - 37

1/8" Radius Edge - 37

1/8" Radius Edge - 37

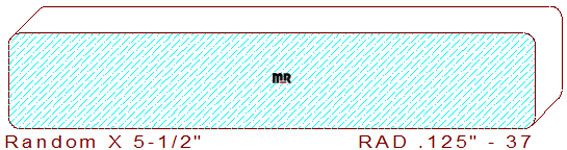

This double-radius edge 1/8" - 37 measures 5.500" wide by random thickness, requiring the use of a 5-3/4" wide blank of lumber for milling on an industrial moulder. The knives are capable of milling two 1/8" round-overs on two top or bottom edges of a piece of lumber measuring 5-1/2" width. The acrylic template can be flipped over and referenced to either side of the knife grinder to manufacture top or bottom knives for both cutter heads on the machinery. This will enable all four sides of the lumber to get milled simultaneously. If you would like to machine the edges from the right and left vertical cutter heads, review other options, but please note that the thickness of the lumber will be locked in on the thickness instead of the width like this one.

Do you need any supplies for your tool room? Choose any of our quality high-speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your molder and knife grinding room.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.281
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.281

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.50
$312.50
(Template not needed)
Total:
$668.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$337.50
(Template not needed)
Total:
$718.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$362.50
(Template not needed)
Total:
$768.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
