5/32" Radius Edge Moulding - 12

5/32" Radius Edge Moulding - 12

5/32" Radius Edge Moulding - 12

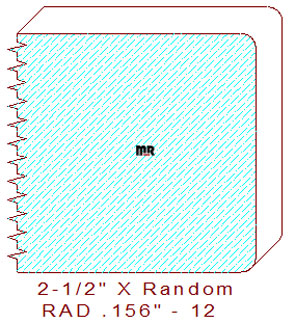

This double radius edge molding 5/32" - 12 measures 2.500" thickness, permitting the detail to be milled out of twelve quarter lumber, the width can be machined to any desired size within the parameters of the shaper or molder use to cut the pattern. The blades are capable of milling two 5/32" round-overs on one side edge of a piece of lumber measuring 2-1/2" thickness. The plastic template can be turned over and referenced to either side of the profile knife grinder to produce a set of right or left knives for both vertical cutter heads, enabling all four sides to be milled simultaneously.

Utilize any of our patterns to create a stylish molding catalog for your millwork company, or, connect our profile catalog to your website, this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on molding design. Let us help you transform that beautiful house being constructed into an elegant home.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 2.500" / Depth of Cut = .312" (right blades) & .312" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
