5/32" Radius Edge Moulding - 13

5/32" Radius Edge Moulding - 13

5/32" Radius Edge Moulding - 13

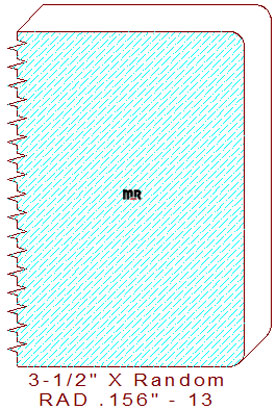

This double radius edge molding 5/32" - 13 measures 3.500" thickness, permitting the detail to be milled out of sixteen-quarter lumber; the width can be machined to any desired size within the parameters of the machinery used to cut the pattern. The blades are capable of milling two 5/32" round-overs on one side edge of lumber measuring 3-1/2" thickness dimension. The acrylic template can be flipped over and referenced to either side of the profile knife grinder to manufacture a set of right or left knives for both vertical cutter heads, enabling all four sides of the lumber to be milled simultaneously.

Need some supplies for your machinery? Choose any of our quality high-speed knife steel or premium carbide; we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your molder and tool grinding room.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 3.500" / Depth of Cut = .312" (right blades) & .312" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
