1/4" Radius Edge - 15
1/4" Radius Edge - 15

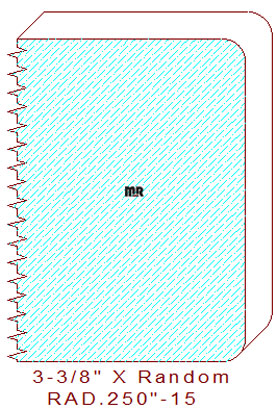

This double 1/4" radius edge - 15 measures 3.375" tall. Thickness is machined to any desired size within the parameters of the moulder used to mill the pattern. The profile is capable of milling two 1/4" radii on the two edges of a piece of lumber measuring 3-3/8" thickness. The template is flipped over and referenced on both sides of the knife grinder to manufacture a set of top and bottom cutters for both horizontal cutter heads, enabling simultaneous milling of all four corners of the lumber.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.437
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.437
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$258.50
$214.50
(Template not needed)
Total:
$473.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.00
$231.00
(Template not needed)
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.75
$255.75
(Template not needed)
Total:
$555.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
