1/2" Radius Edge Moulding - 5

1/2" Radius Edge Moulding - 5

1/2" Radius Edge Moulding - 5

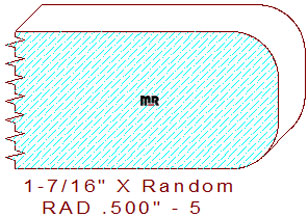

This double 1/2" radius edge molding - 5 measures 1.437" thickness, enabling the detail to be milled from six-quarter lumber; the width can be machined to any desired size within the parameters of the shaper or molder used to cut the pattern. The profile comprises a 7/16" wide line segment in the center, flanked by a 1/2" radius semicircle on each side edge of the design. We always provide sufficient blend areas within the knife design, so no one will ever realize where one cutter begins or ends.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office; our molding catalog has over fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 1.437" / Depth of Cut = .687" (right blades) or .687" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
