1/2" Radius Edge Moulding - 9

1/2" Radius Edge Moulding - 9

1/2" Radius Edge Moulding - 9

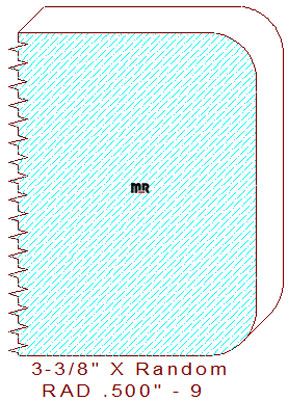

This double-radius edge moulding 1/2" - 9 measures 3.375" thickness, requiring the use of any width blank of fourteen-quarter lumber for milling on an industrial moulder. The cutters can mill two 1/2" round-overs on one edge of lumber measuring 3-3/8" thickness with a 2-3/8" flat section in the center. The acrylic template is turned over to either side of the profile grinder reference pins to manufacture a set of right or left knives for the vertical cutter heads on the machine. This will enable all four sides of the lumber to be milled at the same time.

You will be able to manufacture high-speed steel or carbide molding knives literally within minutes after downloading this beautiful pattern from the purchase DXF file link below. Take a moment to glance at our updated tooling and supplies catalog of high-quality products we supply for your machinery and knife grinding room. We offer competitive pricing and fast shipping options.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Thickness = 3.375" / Depth of Cut = .750" (right knives) &/or .750" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
