Raised Panel Moulding 1-9/16" - 1

Raised Panel Moulding 1-9/16" - 1

Raised Panel Moulding 1-9/16" - 1

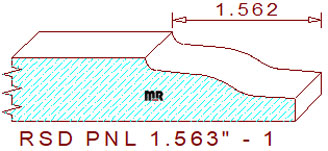

This decorative raised panel moulding 1-9/16" - 1 measure 1.562" wide in the detail area, it can be machined at any desired width or thickness within the parameters of the shaper used to mill the pattern; it will not be able to be produced on an industrial molder. The wave-like profile is composed of a tapered 1/8" radius congee in the center, connected to a two tangent radius french curve that joins to a five-degree tapered line on the right side of the detail.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map. This valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free; offer your clients profile designs they don’t even know exist.

For knife quoting purposes, click the calculator below; we have added only the important measurements and enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .656" / Depth of Cut = 1.562" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
