Raised Panel Moulding 1-13/16" - 1

Raised Panel Moulding 1-13/16" - 1

Raised Panel Moulding 1-13/16" - 1

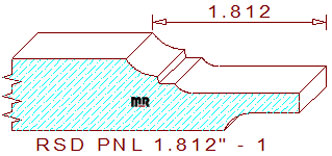

This raised door panel molding 1-13/16" - 1 measures 1.812" width detail on top; it consists of a 13/32" cove with a 5/64" vertical drop. Joined to an 11/64" flat line merged with a 1-19/64" broad congee made up from a 7/32" concave semicircle on the right side of the design. The bottom of the pattern consists of a 13/16" congee made from a 9/32" cove leaving a 7/32" thickness dimension.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.250" / Depth of Cut = .416" (top knives) & .247" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
