Raised Panel Moulding 2"

Raised Panel Moulding 2"

Raised Panel Moulding 2"

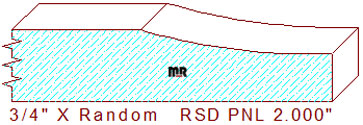

This scalloped raised panel moulding 2" measures .750" thickness. The width can be machined to any desired size within the parameters of the molder or shaper used to mill the pattern. The concave two-inch profile is composed of a 6-1/4" radius semicircular arc with a 1/4" wide flat line on the right side of the design to fit into the stile and rail portion of the door.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of creative designs for years; we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free dxf files, see how easy the services we provide can increase productivity while reducing manufacturing costs.

For knife quoting purposes, click the calculator below; we have added only the important measurements and enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.000" / Depth of Cut = .000" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
