Raised Panel Moulding 2-1/2"

Raised Panel Moulding 2-1/2"

Raised Panel Moulding 2-1/2"

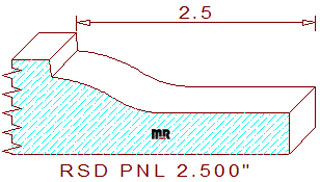

This fancy raised panel moulding 2-1/2" measures 2.500" wide in the detailed area. The profile comprises a 3/16" deep vertical line that connects to a 1-1/2" radius arc, tangent off of a 63/64" concave semicircle with a 1-5/16" wide straight line on the small side of the design. The pattern is designed to be milled on a shaper; it does not cut the small horizontal line at the top of the detail; this enables different sized widths to be obtained.

With over 15,000 profile designs in our search by size moulding catalog, there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes, click the calculator below; we have added only the important measurements and enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.500" / Depth of Cut = .563" (right knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
