Raised Panel Moulding 3-1/8"

Raised Panel Moulding 3-1/8"

Raised Panel Moulding 3-1/8"

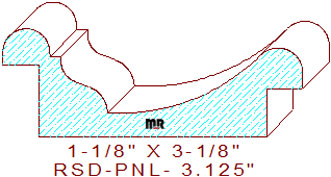

This decorative raised panel moulding 3-1/8" measures 3.125" wide by 1.125" thickness, necessitating the use of five or six quarter lumber for milling on an industrial style moulder. The stunningly attractive profile is composed of a 1/2" wide bullnose on the top left, connected to a 7/64" wide line segment that joins to a down-sloping two tangent radius cyma recta in the center, attached to an up-sloping 2-1/16" concave semicircle with another 1/2" wide half round circle on the right side of the design. The rabbet on the left side measures 3/8" wide by 3/4" tall while the rabbet on the right side is 3/8" wide by 1/2" tall.

This professionally drafted cad dxf file (available for purchase in the box below) contains two high precision template designs to create cutters for this gorgeous raided panel design. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination; let us assist you in complementing your architectural decor with any of our attractive designs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.125" / Depth of Cut = .875" (top knives.)

Thickness = 1.125" / Depth of Cut = .375" (right blades) & .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
