Raised Panel Moulding 3-1/8" - 1

Raised Panel Moulding 3-1/8" - 1

Raised Panel Moulding 3-1/8" - 1

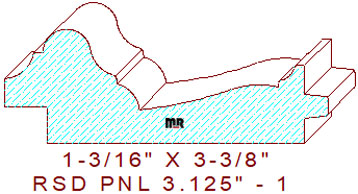

This beautiful raised panel moulding 3-1/8" - 1 measures 3.375" wide overall with a face dimension of 3.125" by 1.187" thickness. The fancy profile is comprised of a lovely cyma reversa attached to a small fillet and a cove on the tall side joined to a vertical line with a quarter-round bead that transitions upward to a decorative small covetto on the tongue side of the design.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.375" / Depth of Cut = .838" (top knives.)

Thickness = 1.187" / Depth of Cut = .437" (right blades) & .250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
