Raised Panel Moulding 3-3/4"

Raised Panel Moulding 3-3/4"

Raised Panel Moulding 3-3/4"

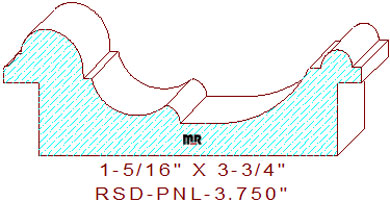

This ornate raised panel moulding 3-3/4" measures 3.750" wide by 1.312" thickness, necessitating the use of six quarter lumber for milling on an industrial moulder. The gorgeous profile is composed of a 21/32" wide thumbnail shaped arc with a 1/16" wide fillet and a 9/64" cove on the top left, connected to a 5/64" wide line segment that joins to a 31/64" scotia with a 13/64" beak-shaped arc in the center, attached to an up-sloping 1-11/32" wide concave semicircle with an elliptical-shaped half round bead flanked by small line segments on the right side of the design. The rabbet on the left side measures 3/8" wide by 3/4" tall, the rabbet on the right side is 1/2" wide by 3/4" tall.

We're delighted you found a functional profile that interests you. Please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry, read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.750" / Depth of Cut = .981" (top knives.)

Thickness = 1.312" / Depth of Cut = .250" (right blades) & .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
