Shiplap Moulding 3"

Shiplap Moulding 3"

Shiplap Moulding 3"

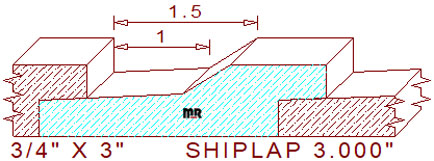

This shiplap siding molding 3" measures 3.000" width by .750" thickness allowing the use of four quarter lumber for milling on a commercial-grade molder. The stylish pattern contains a 1-1/2" broad 2.386" beveled line, one-half-inch of this angled line is inserted into the piece of lumber in front when installed. The canted line connects to a 1/2" wide thirty-two-degree beveled line that joins a one-inch wide flat section on the top right side. When two pieces of milled lumber get merged, they create a 2-1/2" face coverage dimension.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .386" (top knives) & .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
