Shiplap Moulding 3-3/8"

Shiplap Moulding 3-3/8"

Shiplap Moulding 3-3/8"

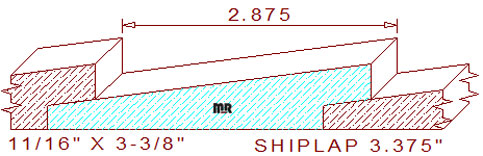

This Beveled Shiplap Siding Moulding 3-3/8" measures 3.375" wide by .687" thickness with a depth of cut at 15/32" deep and an exposed face dimension of 2.875" wide when installed. The profile is comprised of a 7.38-degree bevel that transitions from 11/16" down to 1/4" thickness on the thin side of the pattern, the backside rabbet dimension is 1/2" wide with the same degree angle as the face that will be hidden on the underneath side of the piece of lumber in front of it when assembled. A reverse profile pressure is recommended to hold the product down on the bedplates of the machinery during the milling process. New home or older, we have the ability, knowledge, and experience to replicate molding design styles of today and yesteryear.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
