Shiplap Moulding 3-1/2"

Shiplap Moulding 3-1/2"

Shiplap Moulding 3-1/2"

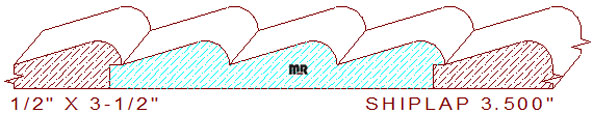

This teardrop shiplap siding molding 3-1/2" measures 3.500" wide by .500" thickness; the exposed face dimension is 3-3/8" wide. The profile comprises three evenly spaced 1/4" radiuses 1-1/8" apart; each tapers downward like a teardrop to the next section. One portion of the design is 1-1/4" wide, 1/8" will be hidden under the rabbet on the opposite side of the piece in front of it. This pattern is used for siding applications and in the manufacturing of false louver doors.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this beautiful siding detail. From just an idea in one's mind to reality in their home, our profiles reflect the beauty and style of your imagination; let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.500" / Depth of Cut = .313" (top knives).

Thickness = .500" / Depth of Cut = .125" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
