Shiplap Moulding 3-1/2" - 1

Shiplap Moulding 3-1/2" - 1

Shiplap Moulding 3-1/2" - 1

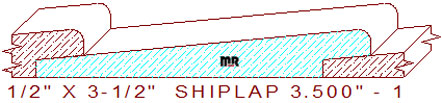

This beveled shiplap siding molding 3-1/2" - 1, measures 3.500" width by .500" thickness, permitting the use of resawn six, or solid four-quarter lumber for milling on an industrial-grade molder. The angled detail contains a 1/8" rounded edge on the top right, this eased edge is tangent to a downsloping 5.308 degree beveled line that transitions the thickness to 3/16" on the top left. The backside rabbet dimension is 1/2" across by 3/16" tall with the same angle as the top. For installation and planning purposes, when merging two pieces of milled lumber, they create a three-inch face coverage dimension.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.500" / Depth of Cut = .344" (top knives).

Thickness = .500" / Depth of Cut = .500" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
