Shiplap Moulding 3-1/2" - 2

Shiplap Moulding 3-1/2" - 2

Shiplap Moulding 3-1/2" - 2

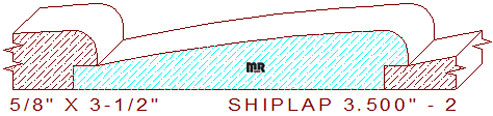

This shiplap siding molding 3-1/2" - 2 measures 3.500" wide by .625" thickness with a .250" depth of cut on the left vertical set of cutters and a .406" depth of cut on the top horizontal set of knives.

The false louver design is comprised of a 1/4" radius edge tangent off an 18" radius arch center that transitions the elevation from 5/8" on the thick side, to 1/4" thickness dimension on the opposite side. The backside rabbet measures 1/4" wide by 1/4" tall, this square notch will perfectly receive the pieces of lumber in front of one another when installed. We have other false louver moulding designs located in our Shutter/Louver Parts category, please look there for more options.

Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Whether you own a recently built house or an older-style residence, we have the ability, knowledge, and experience to create designs that will complement the architectural décor of your elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
