Shiplap Moulding 3-1/2" - 5

Shiplap Moulding 3-1/2" - 5

Shiplap Moulding 3-1/2" - 5

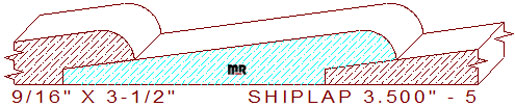

This drop shiplap siding moulding 3-1/2" - 5 measures 3.500" wide by .562" thickness. The detail will require the use of a 3-3/4" wide blank of four-quarter lumber for milling on an industrial molder. The traditional teardrop profile comprises an 11/32" round over tangent to a 7.42-degree angled line that transitions the thickness to 5/32" on the thin edge. The rabbet dimension is 3/4" wide by 5/32" tall, leaving a 2-3/4" face coverage dimension when installed.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.500" / Depth of Cut = .442" (top knives).

Thickness = .562" / Depth of Cut = .750" (left blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
