Shiplap Moulding 3-9/16"

Shiplap Moulding 3-9/16"

Shiplap Moulding 3-9/16"

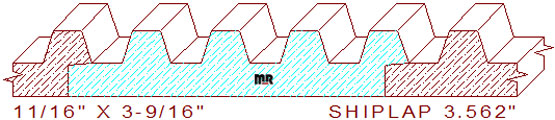

This unique shiplap molding 3-9/16" measure 3.562" width by .687" thickness allowing the use of four quarter lumber for milling on an industrial-style molder. The stylish profile contains four 33/64" wide trapezoid-shaped sections divided by four 5/16" broad sunk fillets with a 1/4" full tongue. The face coverage dimension is 3-5/16" when installed.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.562" / Depth of Cut = .563" (top knives).

Thickness = .687" / Depth of Cut = .250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
