Shiplap Moulding 4-3/8"

Shiplap Moulding 4-3/8"

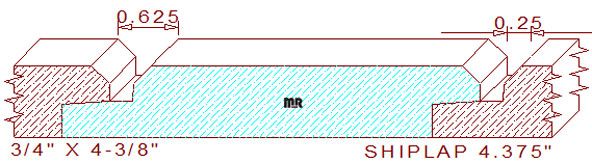

This shiplap siding molding measures 4-3/8" wide by 3/4" thickness with a face exposure of 3-7/8". The profile design is composed of two 3/16" chamfered edges, and a 3/4" wide fillet, 1/2" of it fits into the piece before it when installed. When two boards are joined together, they create a 5/8" wide V gap with a 1/4" wide sunk fillet between the chamfers, an aesthetic design that will enhance the architectural appeal wherever it is installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
