Shiplap Moulding 4-7/16"

Shiplap Moulding 4-7/16"

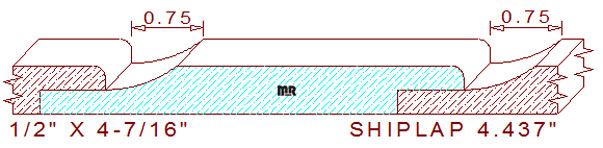

This shiplap siding moulding 4-7/16" measures 4.437" wide by .500" thickness with an exposed face dimension of 3-3/4". The profile consists of a 1-7/16" wide congee on one side of the design with a 1/8" radius eased edge on the other side. This pattern is mainly used for siding. The congee serves two purposes; it adds a pleasant appeal while directing moisture away from the joint areas of the surface when used on exterior surfaces. The radius on the other side allows for moisture to roll off the edge and protect that same edge from damage or splintering.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
