Shiplap Moulding 4-1/2" - 2

Shiplap Moulding 4-1/2" - 2

Shiplap Moulding 4-1/2" - 2

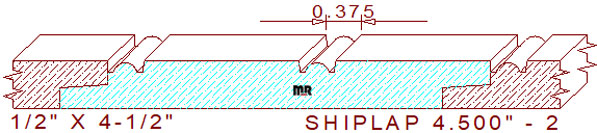

This beaded shiplap siding molding 4-1/2" - 2 measures 4.500" wide by .531" thickness requiring the use of a 4-3/4" wide blank of four-quarter lumber for milling on an industrial molder. The embellished profile contains two 1-5/8" broad flat lines divided by two 3/8" wide channels containing a recessed 1/4" half-round bead flanked by 1/16" sunk fillets. The shiplap rabbeted joint is 1/2" wide, leaving a four-inch face coverage dimension when two pieces of milled lumber get joined together.

We're delighted you found a beautiful profile that interests you; consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. Our companies have a few things in common: our passion for excellence and a quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.000" / Depth of Cut = .118" (top knives).

Thickness = .500" / Depth of Cut = .500" (right blades) & .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
