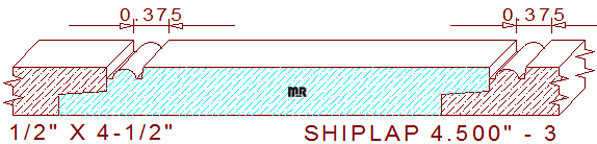

This beaded 4-1/2" - 3 shiplap paneling measures 4.500" wide by .500" thick. The beadboard profile consists of a 1/4" wide half-circle flanked by 1/16" wide sunk fillets, attached to a 1/8" deep by 3-5/8" wide stepped fillet. The half-round bead is recessed by .020" just in case sanding is required after the milling process, this will keep the half-round circle from being flattened by the sanding process. When two pieces of milled lumber are joined, they create a 4" wide face with a 3/8" wide bead detail on one face of the merged boards.
This professionally drafted CAD DXF file contains two high precision template designs to create cutters for this beaded shiplap detail. From just an idea in your mind to reality in your home, our profiles reflect the beauty and style of your imagination; let us help design your custom pattern today.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.500
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.500
Depth of Cut: 0.500
Top Cutter Head
Width: 4.500
Depth of Cut: 0.118
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$145.50
$101.50
(Template not needed)
$348.50
Not Needed
Total:
$595.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.50
$108.50
(Template not needed)
$369.50
Not Needed
Total:
$630.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$122.50
(Template not needed)
$411.50
Not Needed
Total:
$700.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
