Shiplap Siding 4-3/4" - 2

Shiplap Siding 4-3/4" - 2

Shiplap Siding 4-3/4" - 2

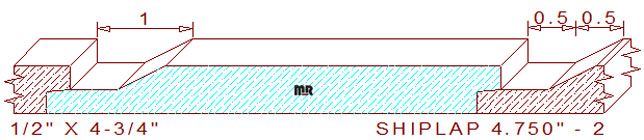

This shiplap siding 4-3/4" - 3 measures 4.750" wide by .500" thickness, requiring a 5" wide blank of four-quarter lumber for milling on an industrial molder. The lapped profile contains a 3/4" wide fillet at a 1/4" thickness on the top left; one-quarter-inch of the line is hidden under the rabbet in front of it when installed. The short line connects to an upsloping angled line measuring 1/4" wide, merged with a 3-1/2" flat line on the top of the design. When two pieces of milled lumber get joined, they create a 4-1/2" face coverage dimension with a decorative one-inch wide channel between the merged boards.

Whether you have a Weinig R960 profile grinder or a CNC Technology template-making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect their imagination's attractive elegance and architectural style. Be creative by mixing and matching a few of our beautiful designs in your home.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements. Enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.750" / Depth of Cut = .250" (top knives).

Thickness = .500" / Depth of Cut = .281" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
