Shiplap Siding 4-7/8"

Shiplap Siding 4-7/8"

Shiplap Siding 4-7/8"

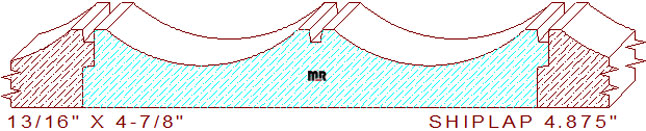

This fluted shiplap siding 4-7/8" measures 4.875" wide by .812" thickness, permitting the pattern to be machined out of four-quarter lumber. The exposed face coverage dimension is 4-3/4" wide. The decorative profile is composed of a 1/8" wide by 1/8" deep kerf flanked by a 1/8" wide line segment in the center, connected to two 1-17/32" concave semicircular flutes joined to a 1/8" wide horizontal line on the left, the opposite side retains the same flat line with an added 1/8" rabbet on top. The two 1/8" side notches serve two purposes; they allow the pattern to become symmetrical when assembled. They also help minimize bowing & cupping from milling the flutes by securing the piece of wood in front of it during installation.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes, click to open the calculator below; we have added only the important measurement; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart and place it on the machinery to help operators save time and increase accuracy during machine setup.

Width = 4.875" / Depth of Cut = .375" (top knives.)

Thickness = .812" / Depth of Cut = .125" (right blades) & .125" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
