Shiplap Moulding 5-3/16"

Shiplap Moulding 5-3/16"

Shiplap Moulding 5-3/16"

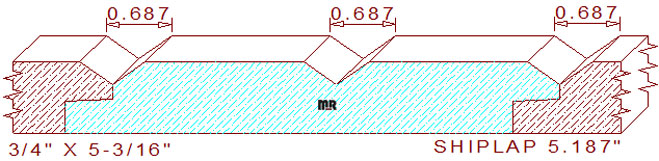

This 11/16" V Joint Shiplap Siding Moulding 5-3/16" measures 5.187" wide by .750" thickness, with a .500" depth of cut on the left vertical set of cutters, and a .439" depth of cut on the top horizontal set of knives.

The functional profile is comprised of an 11/16" wide by 1/4" deep vee groove in the center, flanked by 1-23/32" wide horizontal fillets, joined to an 11/32" chamfer on each side edge of the pattern. The back-side rabbet measures 1/2" wide by 23/64" tall with the appropriate draft angles to sharpen the knives properly when they become dull. When two pieces of finished milled lumber are joined together, they create a 4-11/16" face exposure consisting of three 11/16" wide by 1/4" deep vee grooves on one face side of the merged boards.

Need this profile template and a set of custom knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; there are literally thousands of compelling moulding designs to help match your creative style.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
