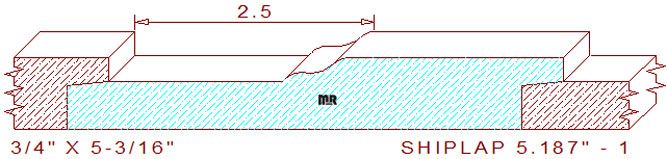

This 5" - 1 shiplap siding measures 5.187" wide by .750" thickness. The profile is comprised of a 2-1/4" wide lower fillet attached to a s-shaped curvature transitioning into a 2.232" flat section at the thickest portion of the pattern. The backside rabbet measures 7/16" wide by .462" tall. When two pieces of finished milled lumber are joined together they create a 4-3/4" face exposure consisting of a 2-1/2" wide detailed channel on one face side of the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.437
Top Cutter Head
Width: 5.187
Depth of Cut: 0.312
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$351.72
Not Needed
Total:
$485.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$375.47
Not Needed
Total:
$516.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$411.09
Not Needed
Total:
$562.59
