Shiplap Moulding 5-1/4" - 6

Shiplap Moulding 5-1/4" - 6

Shiplap Moulding 5-1/4" - 6

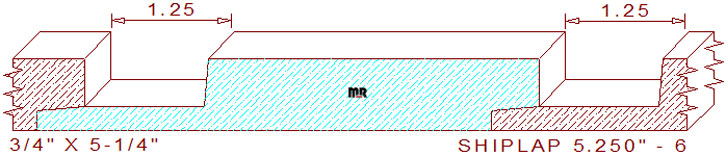

This channel shiplap molding 5-1/4" - 6 measures 5.250" wide by .750" thickness, allowing the detail to be machined out of four quarter lumber. The beautiful simplistic profile is composed of a 3-1/2" wide line segment in the center, attached to a 1/2" vertical line connected to a 1-1/4" wide flat line and merged with a 1/2" wide five-degree angled line that fits in the 1/2" wide by 1/4' tall rabbet on the opposite side. When two pieces of milled lumber are joined, they create a decorative 1-1/4" wide by 1/2" deep channel. Providing a 4-3/4" face coverage dimension when installing.

Are you a manufacturer? If so, please add your company information to our millwork suppliers map; this valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It's free, offer your clients beautiful wood pattern designs that will enhance the grace and opulence of their elegant home.

For molding knife quoting purposes, click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.250" / Depth of Cut = .559" (top knives).

Thickness = .750" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
