Shiplap Moulding 5-1/4" - 7

Shiplap Moulding 5-1/4" - 7

Shiplap Moulding 5-1/4" - 7

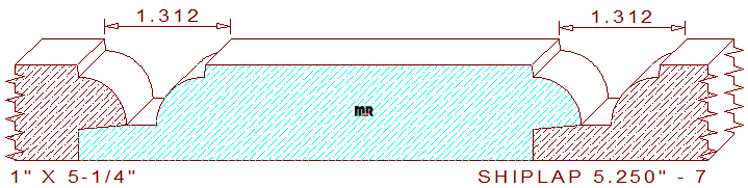

This shiplap siding molding 5-1/4" - 7 measures 5.250" width by 1.000" thickness, necessitating the use of five quarter lumber for milling on an industrial molder. The decorative profile contains a 3-7/16" wide by 1/8" tall raised fillet on the top center, flanked by a 1/2" quarter round joined to a 5/16" flat line and a 1/2" tapered line on the left. The right side retains a 1/2" quarter-circle and a 1/2" wide by 3/8" tall rabbet for the tongue side to fit into.

Our professionally designed acrylic templates and knives include the required draft angles and blend areas to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Regardless if you own an industrial shaper or a Weinig, Wadkin, Leadermac, SCM, Diehl, Northtech or Homag molder, our precision cutters will mill flawlessly on them all.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.250" / Depth of Cut = .781" (top knives).

Thickness = 1.000" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
